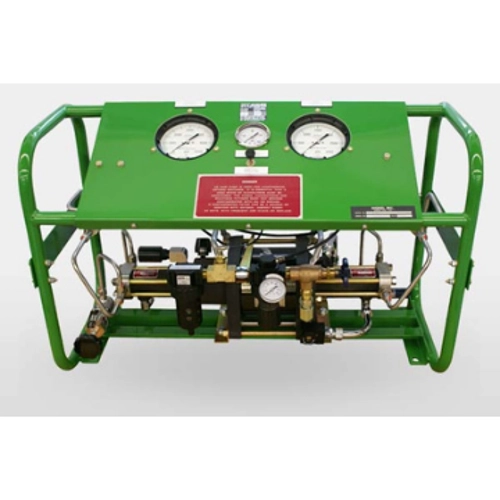

MODEL 26968
FOR LIFE SUPPORT DEPEND ON HASKEL OXYGEN BOOSTERS
Filling aircraft on-board oxygen cylinders for commercial, military and private fleets. Transferring oxygen into various high-pressure receivers for deep ocean diving support, commercial or military. These are just two examples of the uses for Model 26968 oxygen boosters that have provided cost savings and increased safety for many years.
The 26968 gas booster system will boost oxygen from high- or medium-pressure sources and will also function effectively to collect and transfer the gas from partially depleted supply cylinders to “top off” other cylinders to maximum pressure.
Conventional industrial, shipboard or contractor-type compressed air sources are normally used for power. All motive power and controls are completely pneumatic with no electrical connections required.
A pneumatic control system constantly monitors cylinder inlet pressure and tank outlet pressure, automatically shutting down the booster when the desired outlet pressure or minimum inlet pressure is reached, enabling unattended operation.
